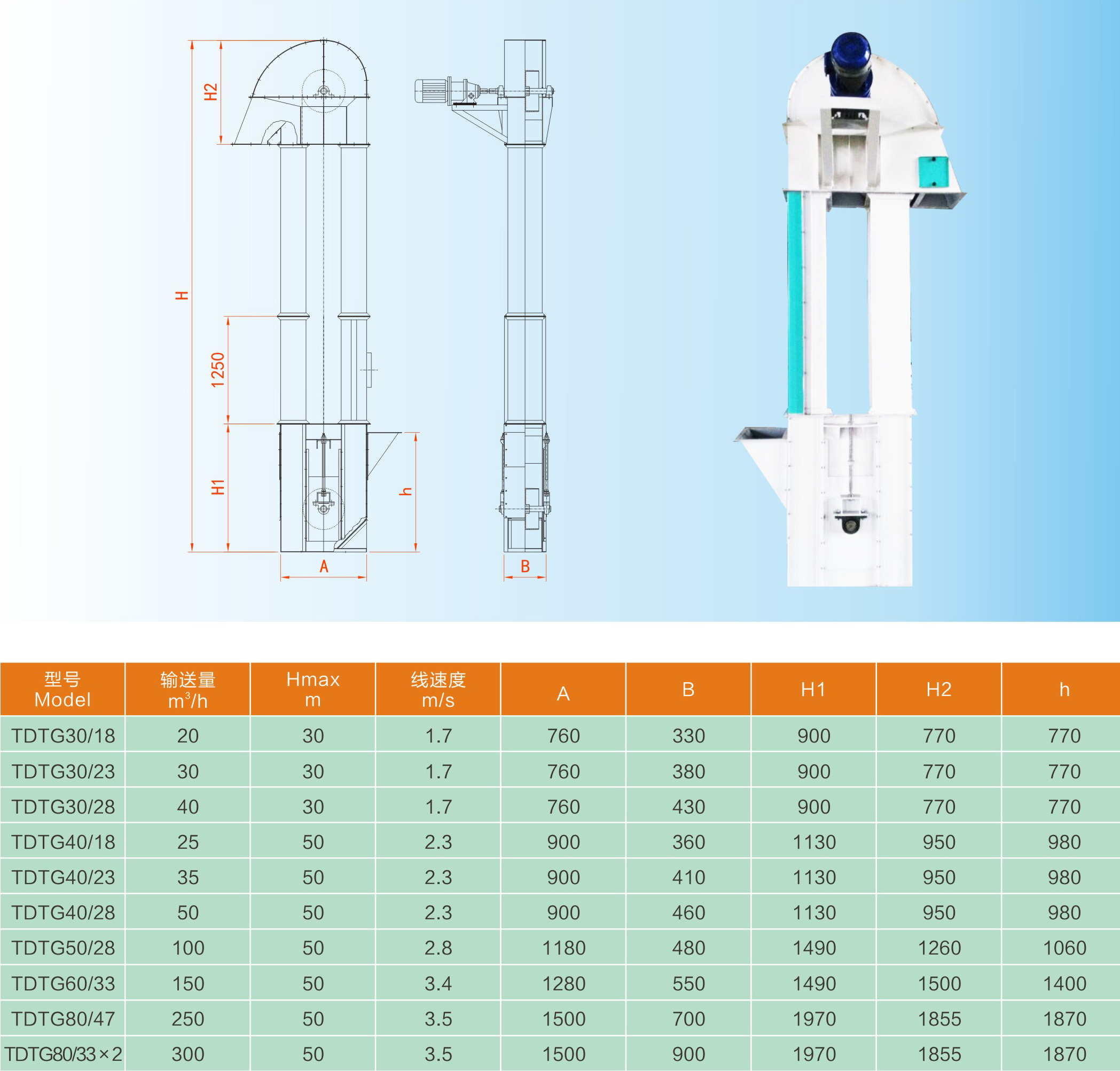

TDTG Series Quick Speed Bucket Elevator with Large Capacity

Large Conveying Capacity, Widely used;

When the lifting height is more than 20 meters, can equip with stopper;

Option: speed sensor, bucket deviation switch, hydraulic coupling and other protective devices.

Introduction of Bucket Elevator

• Bucket elevator has characteristics of large transport capacity, high elevation, stable operation and long working life.
• The machine is applicable for conveying the powder, grain and small block materials
• The bucket elevator is allowed to convey materials with high temperature(250°c) when armed with special chain structure, and the elevating height can reach 40m.

Description:

The bucket elevator is independently developed byJibao and is a fixed installation mainly used for the vertical continuous conveying of powdery materials or granular materials.The equipment is of straightforward structure, compact design, good sealing performance, easy installation and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout.

TH series bucket elevators are available in direct coupling drive, sprocket driven or gear reducer drive, delivering straightforward structure and easy arrangement. The installation height is optional, but the maximum height elevator not beyond 40m.

Application:

Bucket elevators can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities. Some of the most common materials for which bucket elevators are employed include:

ANHUI ZENVO TECHNOLOGY CO., LTD is a professional manufacturer of grain processing machinery , located in China "scientific and educational base" - Hefei City. Since 2010,  ANHUI ZENVO TECHNOLOGY CO., LTD. focused on the development and production of various types of drying machinery and other grain processing machinery.

Our products include: rice grain dryer, batch grain dryers, small grain dryer, portable grain dryer, mixed flow dryer, circulating grain dryer, biomass furnace, CCD color sorter, optical sorting machine, tea color sorting machine, grain color sorter machine, and so on. More than 20 series, 300 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in grain processing, food processing, medicine processing, as well as more industries.

ANHUI ZENVO TECHNOLOGY CO., LTD. brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hefei City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Viet Nam, Pakistan, Bangladesh, Russia, Venezuela, Peru, Turkey, Brazil , India and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best machines at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is ANHUI ZENVO TECHNOLOGY CO., LTD ,to help others achieve their goals.

For more detailed information on our drying & sorting equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
