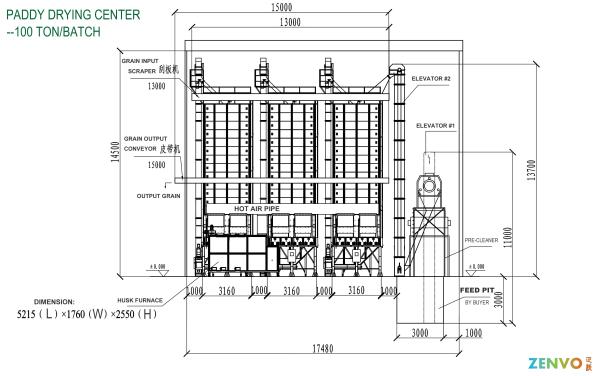

100 Ton Per Batch Paddy Dryer(3 Sets Of 35 Ton )With Husk Furnace
100 Ton Per Batch Paddy Dryer(3 Sets 35 Ton )With One Husk Furnace
Features:
1. The dryer adopts indirect heating which is non-pollution and can
remove the dust in the grain.
2. Adopt the circulation low drying technique which can improve the
drying quality.
3. New unloading design to avoid blocking, leakage, remaining of
the grain or other seeds.
4. The grain has increased crack percentage will be less than 1%
and increased grinding rate will be less than 0.1%, which both
superior to the international standard.
Advantages of the Dryer:
1. High quality grain / wheat / paddy and other seeds after drying
for better selling at good price.
2. Large capacity, high efficiency and the best product in the
market.
3. Low drying cost, long service lift, easy operation and
maintenance.
4. Full-automation in feeding, conveying, drying, moisture control
and optional bagging after drying.
5. Advanced product layout and nice appearance.
Technical Parameters:
Model | 5HXG-15 | 5HXG-22 | 5HXG-35 |
Loading Capacity (Paddy) | 15T | 22T | 30T |
Overall Dimension (L*W*H) | 2224*3161*9410mm | 4400*4500*11600mm | 4960*4750*13650mm |
Weight | 3000 KGS | 4155 KGS | 8930 KGS |
Voltage | Three Phase 380V /440V | ||
Heating Method | Indirect | ||
Total Motor Power | 8.503 kW | 8.903 kW | 17.853 kW |
Drying Rate | 0.5~1.2% / h | ||
Load Time | 40~50 min | 45~55 min | 50~60 min |
Discharge Time | 55~65 min | 60~70 min | 65~75 min |
Safety Device | Overload saftey device, temperature control device, grain overload alarm, chain fault detector, timer switch, control fuse. |
*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humudity.
*Specification is subject to change without notice
![]() |
