    Stainless Steel 15 Ton Per Batch Paddy Dryer ReCirculating With Furnace

    Ask Lasest Price
    Brand Name : ZENVO
    Model Number : 5HXG-15
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Stainless Steel 15 Ton Per Batch Paddy Dryer ReCirculating With Furnace

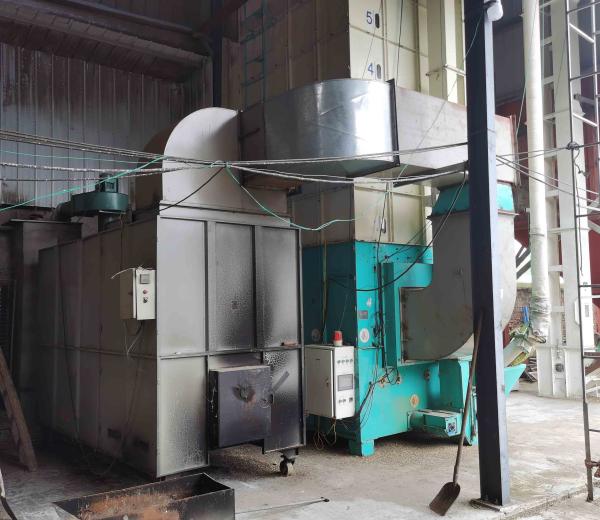

    15 Ton Per Batch Re-Circulating Paddy Dryer With Furnace

    Features:

    This is a 15 ton per batch recirculating paddy dryer, equipped with coal furnace 450,000 kcal/h.

    The low temperature cross-flow drying technology ensures the paddy drying quality after drying.

    It is augur type dryer with indirect heating. The distributing plate makes each paddy granual contact the same temperature.

    The PVC bucket is from famous brand in China, which ensures the durablity.

    The machine can be controlled with PLC control panel. or controlled manually as per customers option;

    The furnace is controlled automatically and equipped with ash tray.


    Technical Parameters:


    Model5HXG-155HXG-205HXG-30
    Loading Capacity (Paddy)15T20T30T
    Overall Dimension (L*W*H)2224*3161*9410mm4400*4500*11600mm4500*4300*12700mm
    Weight3000 KGS4155 KGS5630 KGS
    VoltageThree Phase 380V /440V
    Heating MethodIndirect
    Total Motor Power8.503 kW8.903 kW15.853 kW
    Drying Rate0.5~1.2% / h
    Load Time40~50 min45~55 min50~60 min
    Discharge Time55~65 min60~70 min65~75 min
    Safety DeviceOverload saftey device, temperature control device, overload alarm timer, chain fault detector, timer switch, control fuse.
